제품 상세 정보:
|
| application: | Other | pressure: | Low Pressure |
|---|---|---|---|
| warranty: | 1 year | Applicable temperature: | 5-80°C |
| Connection Type: | Flange Connection, Thread | Control Method: | Fully Automatic Control |
| customized support: | OEM, ODM | Displacement: | 0.5M³/H |
| horsepower: | None | Membrane material: | Ethylene Propylene Diene Monomer (Epdm) |
| motor: | None | outlet size: | 50MM |
| power source: | Pneumatic | structure: | Diaphragm Pump |
| suction head: | 7 m | Material: | Aluminum |

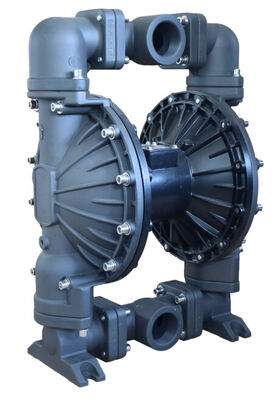

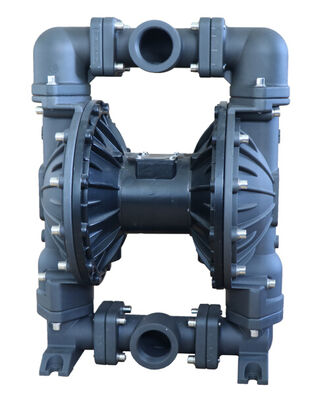

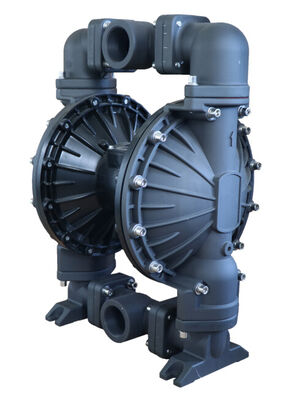

| Name: | Diaphragm Pump | Diaphragm: | SP |
| Weight: | 29kgs | Speed: | 145cpm |
| Brand: | RV | Packing: | carton |
| Max pressure: | 120psi(0.84Mpa,8.4bar) | Pump body: | Aluminum |
| Max Flow: | 150gpm(570lpm) | ||
| 강조하다: | 2 인치 알루미늄 공기 대막 펌프,대류 공기 작동 펌프,폐수 처리를 위한 다이어프램 펌프 |
||
최대 작업 압력 | 120psi (0.84Mpa, 8.4bar) |
최대 흐름 속도 | 150gpm ((570pm) |
최대 역행 속도 | 145cpm |
최대 흡수 높이 (건조 흡수) | 5m |
최대 허용 곡물 | 0.24인치 (6mm) |
최대 공기 소비 | 140scfm ((70L/S) |
공기 입구 크기 | 1/2인치 |
공기 출구 크기 | 3/4이 |
유체 입구 크기 | 2인치 |
액체 출구 크기 | 2인치 |
무게 | 알루미늄 펌프:29KGS |
