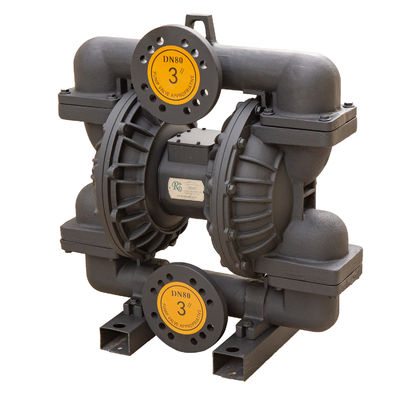

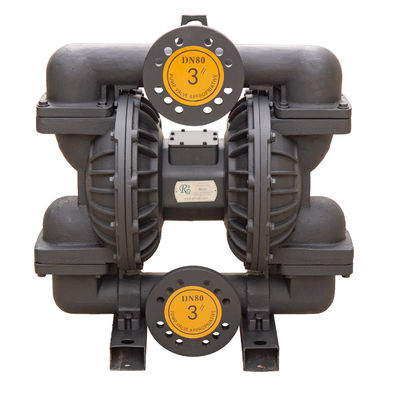

| 재료: | 연성 철 | 무게: | 180kg |
|---|---|---|---|
| 최대 압력: | 120psi (0.84mpa, 8.4bar) | 최대 흐름: | 270gpm (1022lpm) |
| 최대 작업 압력: | 120 psi (0.84mpa, 8.4bar) | 최대 유량: | 270gpm (1022L/m) |
| 최대 왕복 속도: | 135cpm | 최대 흡입 높이: | 5m |
| 최대 허용 곡물: | 0.37in. (9.4mm) | 맥스 공기소비량: | 180SCFM (90L/S) |
| 공기 입구 크기: | 3/4인치 | 공기 배출구 크기: | 3/4 안에 |
| 유체 흡입구 크기: | 3인치 | 유체 배출구 크기: | 3인치 |
| 펌프본체: | 연성 철 | ||
| 강조하다: | 270 gpm Pneumatic Diaphragm Pump,1 Year Warranty Diaphragm Pump,180 kgs AODD Pump |
||
| Specification | Value |
|---|---|
| Max Working Pressure | 120 psi (0.84Mpa, 8.4bar) |
| Max Flow Rate | 270gpm (1022L/M) |
| Max Reciprocating Speed | 135cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 0.37in. (9.4mm) |
| Max Air Consumption | 180scfm (90L/S) |
| Air Inlet Size | 3/4in |
| Air Outlet Size | 3/4in |
| Fluid Inlet Size | 3in |
| Fluid Outlet Size | 3in |
| Weight | Ductile Iron pump: 180KGS |

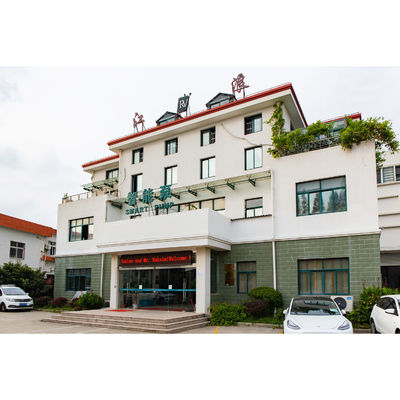

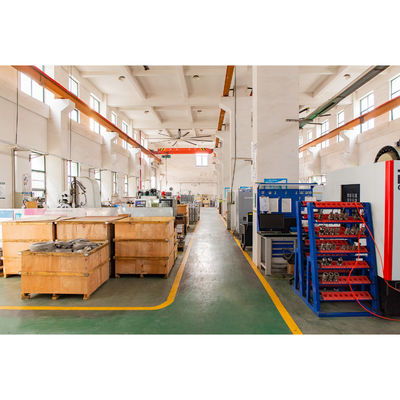

Shanghai Jiangliang Technology Co., Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China. We have been awarded as High-Tech Enterprise and Credit Company in consecutive years.
Our capabilities include design, innovation, precision production, and collaboration with Shanghai universities. Our main products are diaphragm pumps and control valves, including:
Our products have been granted more than 40 patents, including 10 invention patents. We participated in setting technical specifications for pneumatic diaphragm pumps in the petrochemical industry (National Standard No.: SH/T 3191-2017). We hold necessary certificates including TS.A National Manufacturing License, CE, ATex, ISO9001, and SGS.
We serve industries including chemical, painting & coating, water treatment, petroleum, environmental protection, and food/pharmaceutical. We have established long-term relationships with enterprises such as BASF, Bayer, and SAMSUNG, and export to over 70 countries.
Available Materials: Our engineers select the most suitable material for your working conditions:
Available Sizes: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"
Connection Types:
