| 최대 압력: | 120psi (0.84mpa, 8.4bar) | 최대 흐름: | 150gpm (570lpm) |
|---|---|---|---|
| 최대 유량: | 40gpm (150lpm) | 최대 왕복 속도: | 276cpm |
| 최대 흡입 높이: | 5m | 최대 허용 곡물: | 0.16 인치 (4mm) |
| 맥스 공기소비량: | 45cm22.5L/s) | 공기 입구 크기: | 1/2in |
| 공기 배출구 크기: | 3/4 안에 | 유체 흡입구 크기: | 1in |
| 유체 배출구 크기: | 1 안에 | 펌프 무게: | 34kg |
| 재료: | SST | 다이어프램 재료: | ptfe |
| 전원: | 영적인 | ||

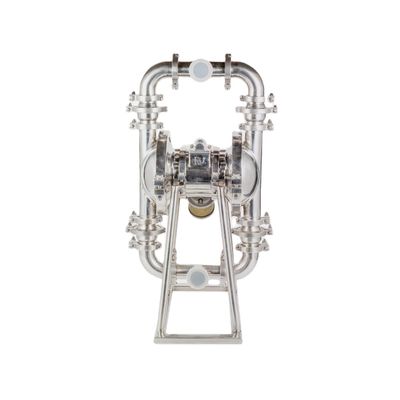

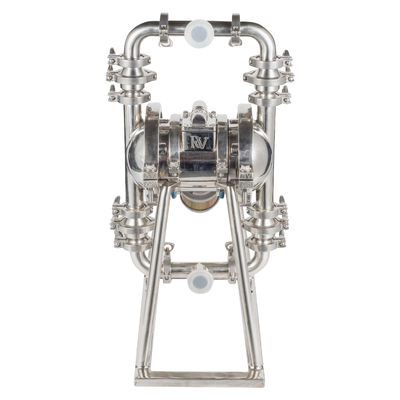

| 강조하다: | 120psi Max Pressure AODD Pump,150gpm Max Flow AODD Pump,1 Year Warranty AODD Pump |
||
| Parameter | Value |
|---|---|
| Max Working Pressure | 120 psi (0.84Mpa, 8.4bar) |
| Max Flow Rate | 40gpm (150lpm) |
| Max Reciprocating Speed | 276cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 0.16 in (4mm) |
| Max Air Consumption | 45scfm (22.5L/S) |
| Air Inlet Size | 1/2in |
| Air Outlet Size | 3/4in |
| Fluid Inlet Size | 1in |
| Fluid Outlet Size | 1in |
| Weight | 34KGS |
Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Shanghai Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years.
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities. Our main products are diaphragm pumps and control valves, including:
The pumps and valves have been granted more than 40 patents, including 10 invention patents. Shanghai Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017.
We hold necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and more.
We serve various industries including chemical, painting & coating, water treatment, petroleum, environmental protection, and food/pharmaceutical industries.
We have established long term business relationships with famous enterprises such as BASF, Bayer, and SAMSUNG. Our RV pneumatic diaphragm pump has been exported to more than 70 countries and regions.
Our engineers will select the most suitable and economical material according to your specific working conditions:
