3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications

3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications
3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications

큰 이미지 :  3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications

제품 상세 정보:
원래 장소: 상하이, 중국
브랜드 이름: RV
모델 번호: RV-P-K2A88-F
결제 및 배송 조건:
최소 주문 수량: 2
가격: $1,666.70
접촉

3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications

설명
재료: pp 횡격막: VT
무게: 66kgs 최대 압력: 120psi (0.84mpa, 8.4bar)
볼 좌석: PVDF 최대 흐름: 270gpm (1022lpm)
최대 작업 압력: 120 psi (0.84mpa, 8.4bar) 최대 유량: 270gpm (1022L/m)
최대 왕복 속도: 135cpm 최대 흡입 높이: 5m
최대 허용 곡물: 0.37in. (9.4mm) 맥스 공기소비량: 180SCFM (90L/S)
공기 입구 크기: 3/4인치 공기 배출구 크기: 1 안에
유체 흡입구 크기: 3인치 유체 배출구 크기: 3인치
강조하다:

270gpm Max Flow Pneumatic Diaphragm Pump

,

1 Year Warranty AODD Pump

,

Air-Driven Diaphragm Pump

3-Inch Pneumatic Air-Driven Diaphragm Pump VT Ball for Wastewater & Drinking Water Treatment
Product Specifications
Specification Value
Max Working Pressure 120 psi (0.84Mpa, 8.4bar)
Max Flow Rate 270gpm (1022L/M)
Max Reciprocating Speed 135cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.37in. (9.4mm)
Max Air Consumption 180scfm (90L/S)
Air Inlet Size 3/4in
Air Outlet Size 1in
Fluid Inlet Size 3in
Fluid Outlet Size 3in
Weight PP pump: 79KGS

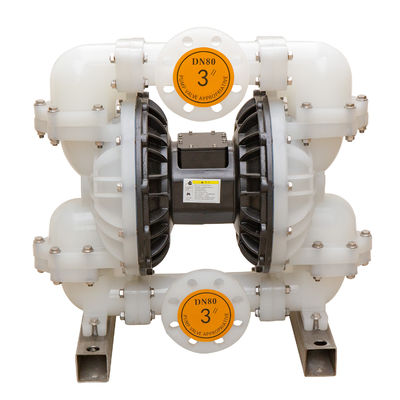

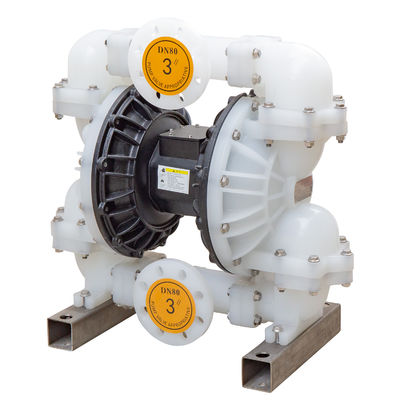

Product Images
3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 0
3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 1
Our Advantages
3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 2
Packing & Delivery
3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 3
3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 4
3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 5
3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 6

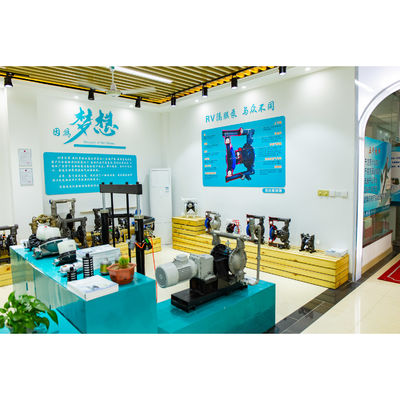

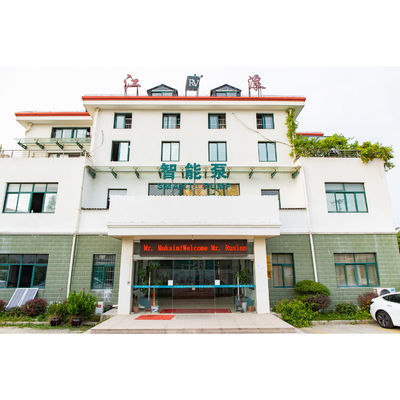

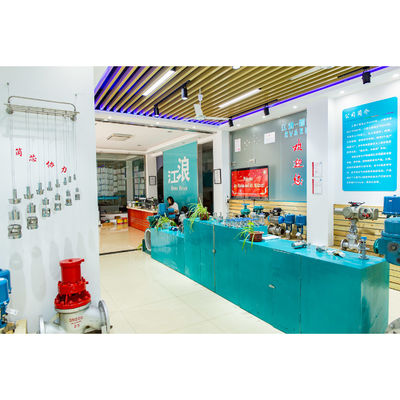

Company Profile
3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 7
Shanghai Jiangliang Technology Co., Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China. We have been awarded as High-Tech Enterprise and Credit Company in consecutive years.
Our product range includes:
  • Pneumatic Diaphragm Pumps
  • Electric Diaphragm Pumps
  • Piston Pumps
  • Powder Pumps
  • Sanitary Pumps
  • Diaphragm Pumps with Leakage Detector Controller
  • Pneumatic Diaphragm Regulating Valves
  • Control Valves
  • Sequencing Valves
Our products hold over 40 patents, including 10 invention patents. We participated in setting national standards for pneumatic diaphragm pumps in petrochemical industry (SH/T 3191-2017) and hold certifications including TS, CE, ATex, ISO9001, and SGS.
Our Service
3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 8
  • All inquiries replied within 24 working hours
  • Professional pump producer with dedicated design team
  • Standard export wooden case packaging (non-fumigation)
  • Fast after-sales service
Frequently Asked Questions
Q: What is MOQ?
A: 1 pc for regular product. Samples are available and sample cost can be deducted from future orders.
Q: What's the payment?
A: D/P, T/T, Western Union - please confirm exact payment method with us when ordering.
Q: What is the delivery time?
A: Depends on quantity. Typically 1-7 working days.
Q: What about package?
A: Cartons with foam inside, wooden case, and pallet options available.
Q: How are the products delivered?
A: By international express or sea freight.
Q: How long is the warranty?
A: 15 years warranty for air motor, 5 years for pump body.
Q: Can products be made to different standards?
A: Yes, we can produce according to custom requirements.
