| 최대 작업 압력: | 120 psi (0.84mpa, 8.4bar) | 최대 유량: | 270gpm (1022L/m) |
|---|---|---|---|
| 최대 왕복 속도: | 135cpm | 최대 흡입 높이: | 5m |
| 최대 허용 곡물: | 0.37in. (9.4mm) | 맥스 공기소비량: | 180SCFM (90L/S) |
| 공기 입구 크기: | 3/4인치 | 공기 배출구 크기: | 1 안에 |
| 유체 흡입구 크기: | 3인치 | 유체 배출구 크기: | 3인치 |
| 펌프 무게: | 79Kg | 적용 가능한 온도: | 5~80°C |
| 연결 유형: | 플랜지 연결 | 밀봉 재료: | ptfe |
| 펌프본체 물질: | pp | ||
| 강조하다: | 5-80°C Diaphragm Pump,270gpm Max Flow Pneumatic Diaphragm Pump,Hytrel Diaphragm Air Operated Diaphragm Pump |
||

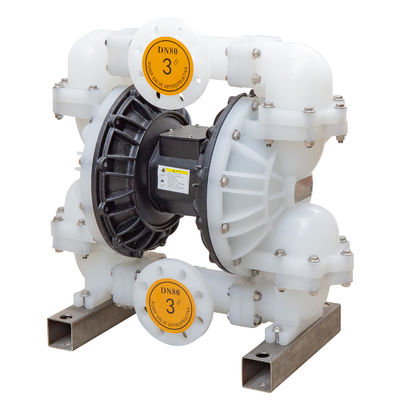

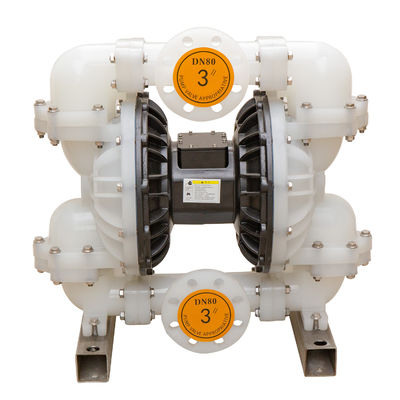

High-performance diaphragm pump designed for wastewater and drinking water treatment in machining applications.
| Specification | Value |
|---|---|
| Max Working Pressure | 120 psi (0.84Mpa, 8.4bar) |
| Max Flow Rate | 270gpm (1022L/M) |
| Max Reciprocating Speed | 135cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 0.37in. (9.4mm) |
| Max Air Consumption | 180scfm (90L/S) |
| Air Inlet Size | 3/4in |
| Air Outlet Size | 1in |
| Fluid Inlet Size | 3in |
| Fluid Outlet Size | 3in |
| Weight | PP pump: 79KGS |

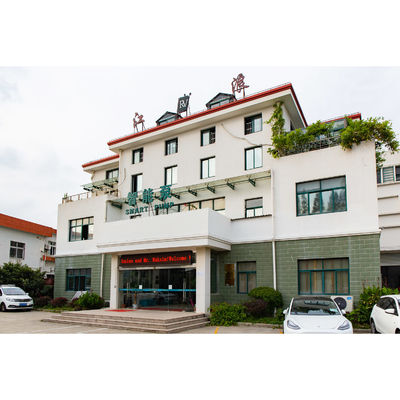

Headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China. Recognized as a High-Tech Enterprise and Credit Company for consecutive years.
Wetted parts: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel
Diaphragm material: Teflon, Santoprene, Viton, Hytrel, Buna-N
Available sizes: 1/4" to 3"
Connection types: Threaded (1/4" to 1-1/2" plastic pumps, all metal pumps) or Flanged (1/2" to 3" plastic pumps)
1 pc for regular product. Samples are available and sample cost can be deducted from future orders.
D/P, T/T, Western Union - please confirm with us for exact order.
Depends on quantity. Generally 1-7 working days.
Cartons with foam inside & wooden case & pallet.
By international express or sea.
15 years warranty for air motor, 5 years for pump body.
Yes, we can produce according to custom requirements.
