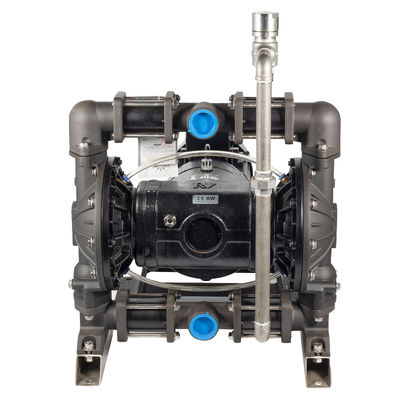

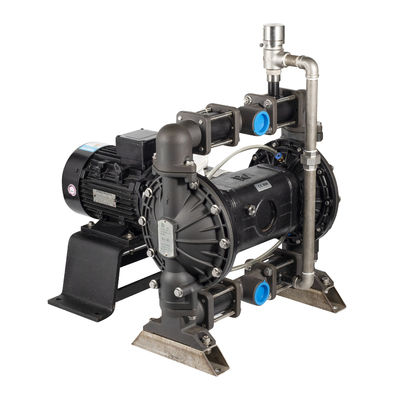

Self Priming Electric Booster Diaphragm Water Pump
Specifications
| Max Working Pressure |
0.6Mpa |
| Max Flow Rate |
6m³/h |
| Suction Lift |
3m |
| Motor Power |
2.2kW standard (3.0kW optional) |
| Motor Speed |
1450r/min |
Our Advantages
Packing & Delivery
Company Profile
Jiangliang Technology Co., Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China. Shanghai Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years.
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities. Our main products are diaphragm pumps and control valves, including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and more.
Our pumps and valves have been granted more than 40 patents, including 10 invention patents. We participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry (National Standard No.: SH/T 3191-2017). We hold necessary certificates including TS.A National Manufacturing License, CE, ATex, ISO9001, and SGS.
We serve chemical, painting & coating, water treatment, petroleum, environmental protection, and food/pharmaceutical industries. We have established long-term business relationships with famous enterprises like BASF, Bayer, and SAMSUNG. Our RV pneumatic diaphragm pump has been exported to over 70 countries.
Available Materials & Configurations
- Wetted parts materials: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel
- Diaphragm materials: Teflon, Santoprene, Viton, Hytrel, Buna-N
- Available inlet/outlet sizes: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"
- Connection types: Threaded (1/4" to 1-1/2" plastic pumps, all metal pumps) or Flanged (1/2" to 3" plastic pumps)
Our Service
- All enquiries replied within 24 working hours
- Professional pump producer with dedicated design team
- Standard export wooden case packaging (non-fumigation)
- Fast after-sales service
Frequently Asked Questions
Q: What is MOQ?
A: 1 pc for regular product. Samples available with sample cost deductible from future orders.
Q: What's the payment method?
A: D/P, T/T, Western Union - please confirm exact method with us for your order.
Q: What is the delivery time?
A: Depends on quantity, typically 1-7 working days.
Q: What about packaging?
A: Cartons with foam inside, wooden case, or pallet options available.
Q: How are products delivered?
A: By international express or sea freight.
Q: How long is the warranty?
A: 15 years warranty for air motor, 5 years for pump body.
Q: Can products be made to different standards?
A: Yes, we can produce according to custom requirements.
