| 최대 출구 압력: | 0.6mpa, 6bar | 최대 유량: | 10.5m3/h |
|---|---|---|---|
| 맥스 흡수 높이: | 3m | 모터 파워: | 3.0kW (표준), 4.0kW (선택 사항) |
| 운동 속도: | 1450r/min | 유체 흡입구 크기: | 1인치 나사산 또는 플랜지 |
| 유체 배출구 크기: | 1인치 나사산 또는 플랜지 | 무게: | 스테인레스 스틸: 122kg, 알루미늄: 77kg, 탄소강: 115kg |
| 모터 유형: | 폭발성 | 전원: | 전기 같은 |
| 펌프 구조: | 격판 펌프 | 펌프 재료: | 알류미늄 |
| 기능: | 전달 액체 | 입구/출구 옵션: | 1/4 내지 3 |
| 연결 유형: | 실이 꿰이거나 플랜지 | ||
| 강조하다: | 10.5m³/h Flow Rate Electric Diaphragm Pump,1 Year Warranty Diaphragm Pump,High Flow Rate Pump |
||

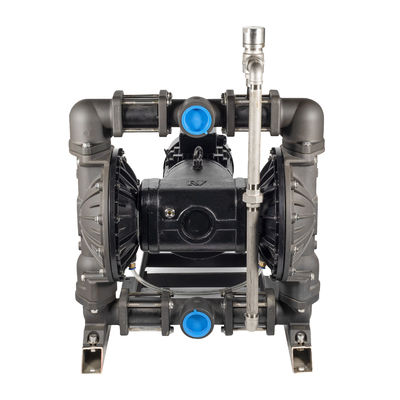

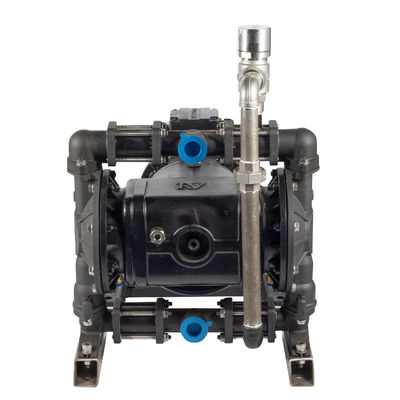

| Parameter | Value |
|---|---|
| Max Outlet Pressure | 0.6Mpa, 6bar |
| Max Flow Rate | 10.5m³/h |
| Max Suction Lift | 3m |
| Motor Power | 3.0KW standard (4.0KW available as option) |
| Motor Speed | 1450r/min |
| Fluid Inlet Size | 1 inch Threaded or Flange |
| Fluid Outlet Size | 1 inch Threaded or Flange |
| Weight | Stainless steel: 122 KGS Aluminum: 77 KGS Carbon steel: 115 KGS |
Shanghai Jiangliang Technology Co., Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China. We have been awarded as High-Tech Enterprise and Credit Company in consecutive years.
We specialize in diaphragm pumps and control valves, including:
Our products have been granted more than 40 patents, including 10 invention patents. We participated in setting national standards for pneumatic diaphragm pumps in petrochemical industry (SH/T 3191-2017). Certifications include TS.A National Manufacturing License, CE, ATex, ISO9001, and SGS.
We serve industries including chemical, painting & coating, water treatment, petroleum, environmental protection, and food/pharmaceutical. Our clients include BASF, Bayer, and SAMSUNG, with exports to over 70 countries.
Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.
Diaphragm material: Teflon, Santoprene, Viton, Hytrel, Buna-N, etc.
Available inlet/outlet sizes: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"
Connection types:
