제품 상세 정보:
|
| 맥스. 작동 압력: | 120psi(0.84Mpa,8.4bar) | 최대유량: | 40gpm(150lpm) |
|---|---|---|---|
| 최대. 왕복 속도: | 276cpm | 최대. 흡입 높이(건식 흡입): | 276cpm |
| 최대. 허용된 곡물: | 0.16인치(4mm) | 최대 공기 소비량: | 45scfm(22.5L/s) |
| 공기 입구 크기: | 1/2인치 | 공기 배출구 크기: | 3/4인치 |
| 유체 흡입구 크기: | 1 안에 | 유체 배출구 크기: | 1in |

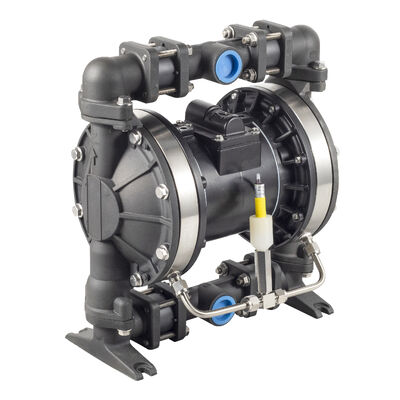

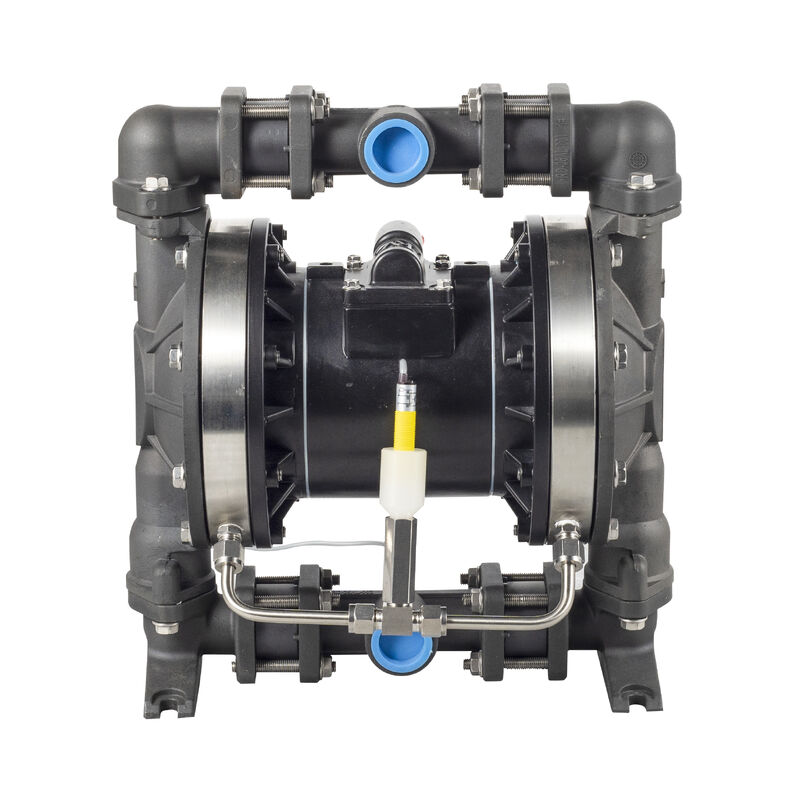

RV Air Operated Double Diaphragm Pump with Diaphragm Rupture Detection (Metal) The RV is a 1-inch metal AODD pump integrated with a diaphragm leakage detection system, engineered for the safe transfer of hazardous, corrosive, high-value or environmentally sensitive fluids. Built with a double-diaphragm structure, this pump monitors the condition of the primary diaphragm in real time. If the main diaphragm ruptures, the detection sensor instantly outputs an alarm signal. The
